PHOSPHATE AND NICKEL PLATING

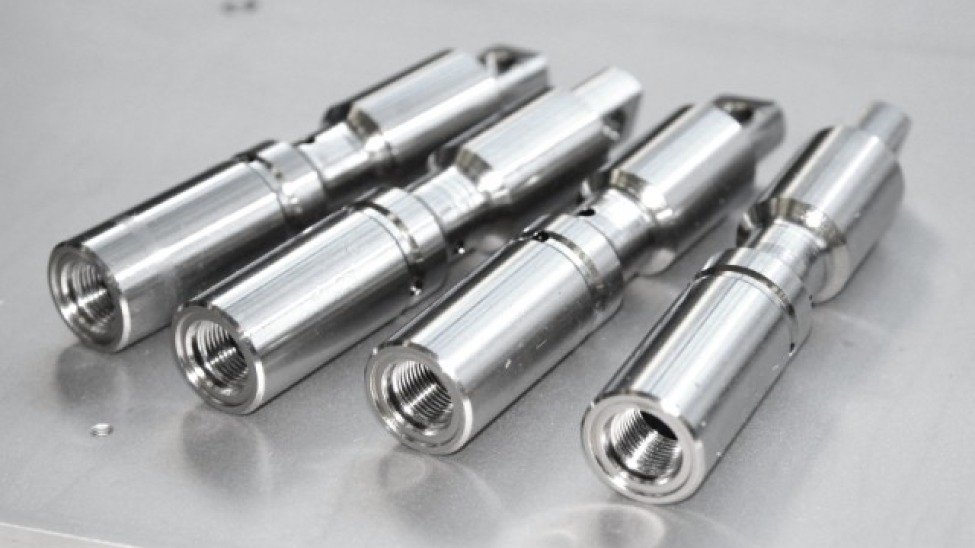

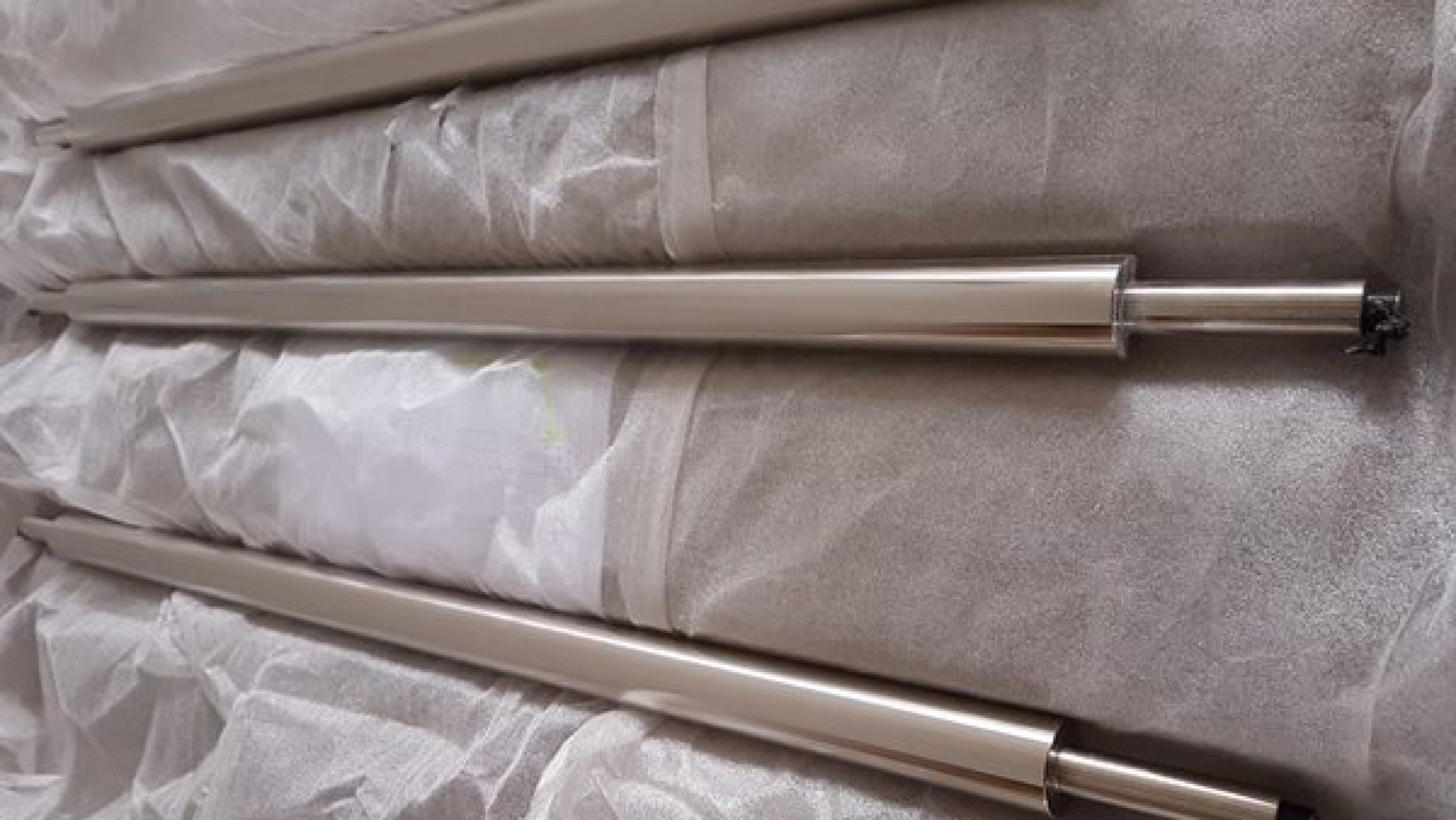

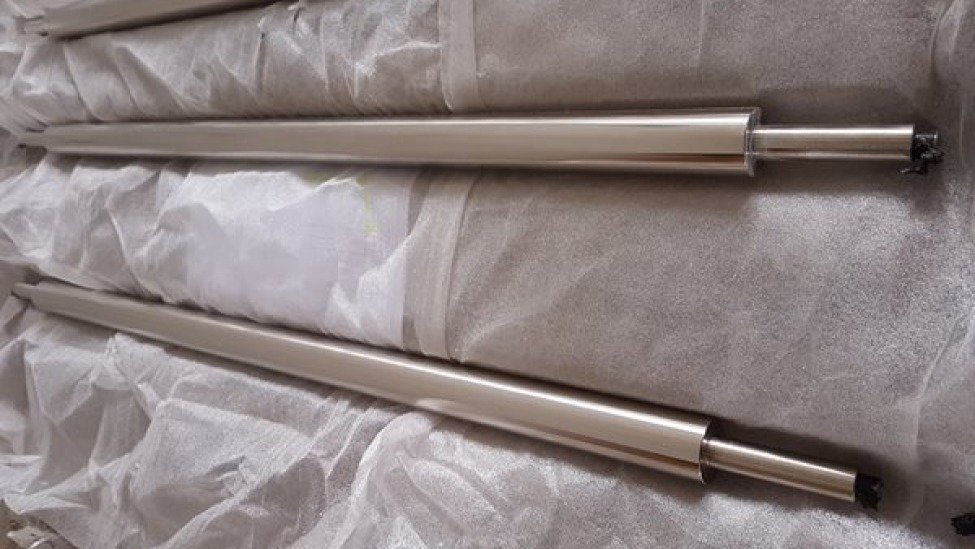

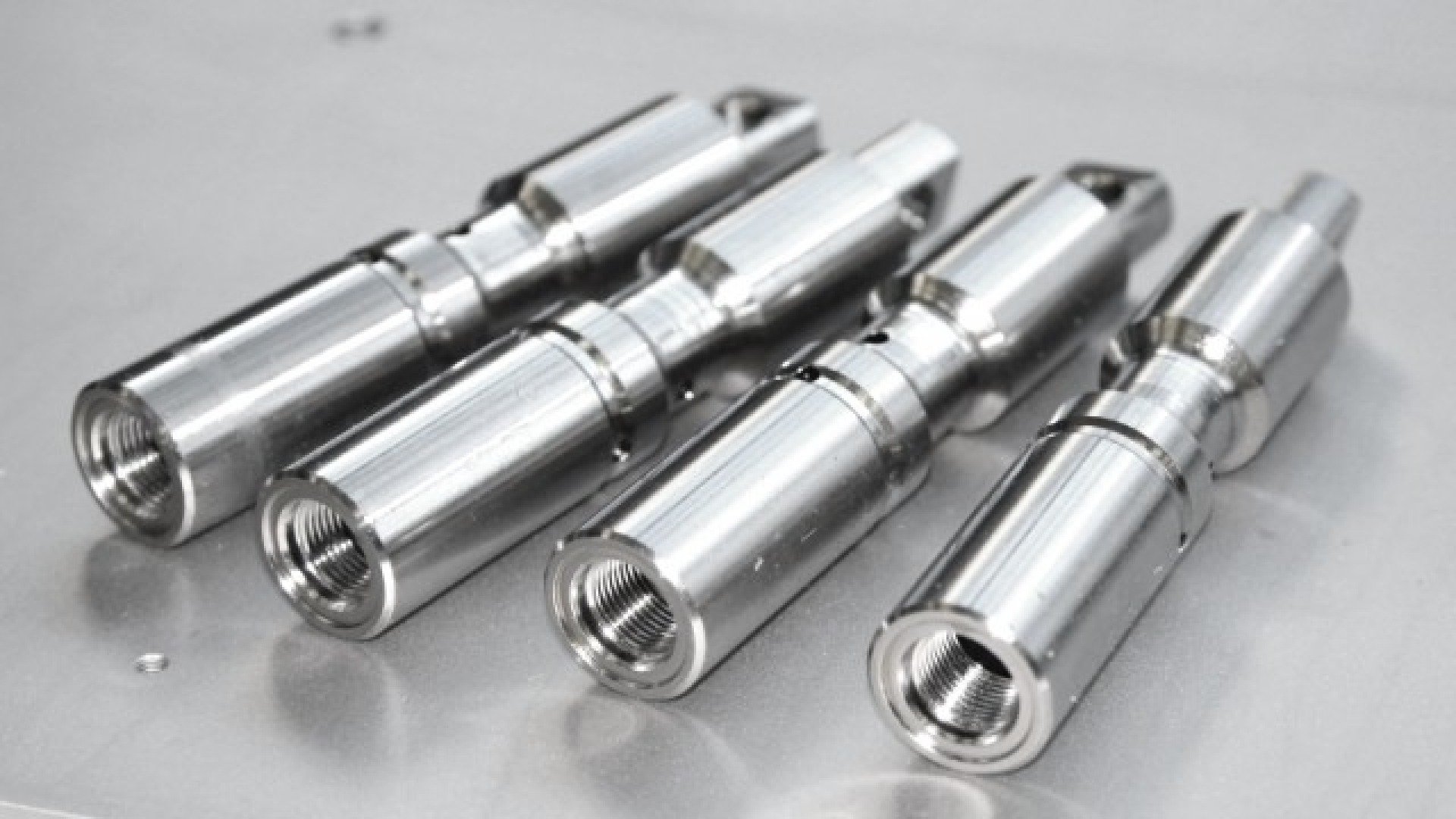

NICKEL PLATING
PROCESS: Electrolytic nickel plating is a galvanic treatment that can be performed exclusively on a metallic material. The nickel layer can be decorative, anti-corrosion and wear-resistant. It is also used as a binder for the deposition of carbides, diamonds and boron.
THICKNESS: the process allows the deposition of thick nickel, up to a maximum of 3 tenths of a millimeter
CAPACITY:
THICKNESS: the process allows the deposition of thick nickel, up to a maximum of 3 tenths of a millimeter
CAPACITY:
- Maximum cylinder diameter: 600 mm
- Maximum length: 500mm
- Maximum weight: 500kg

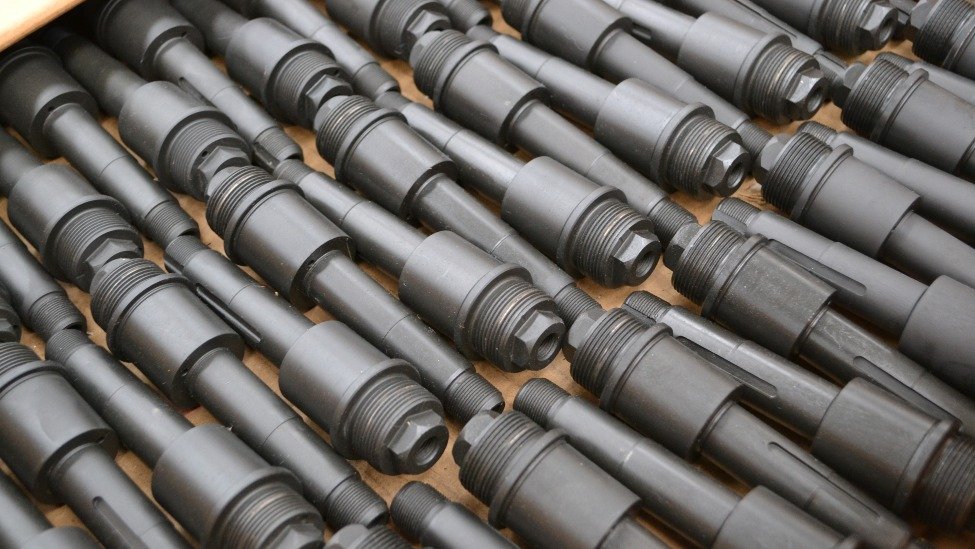

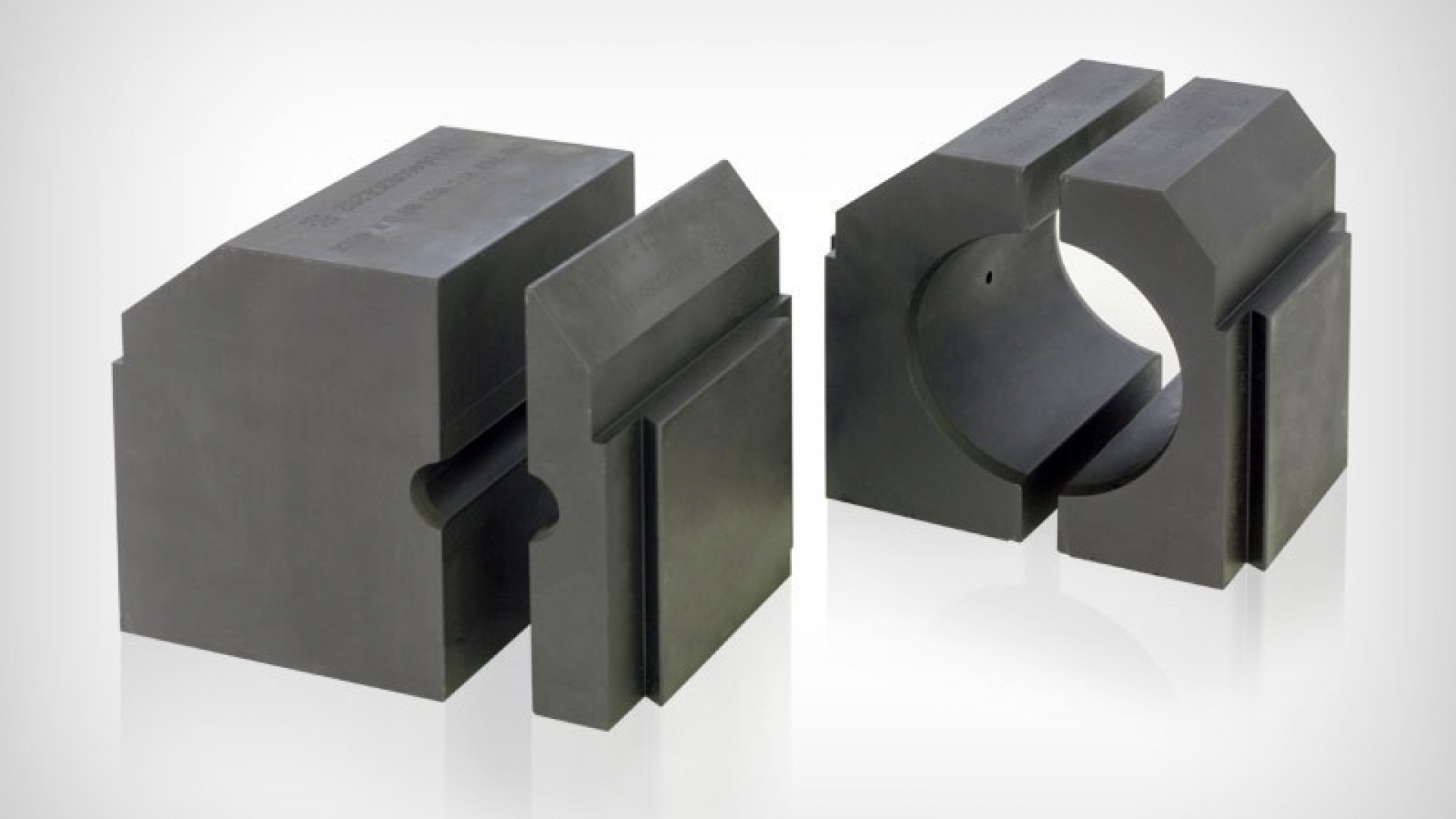

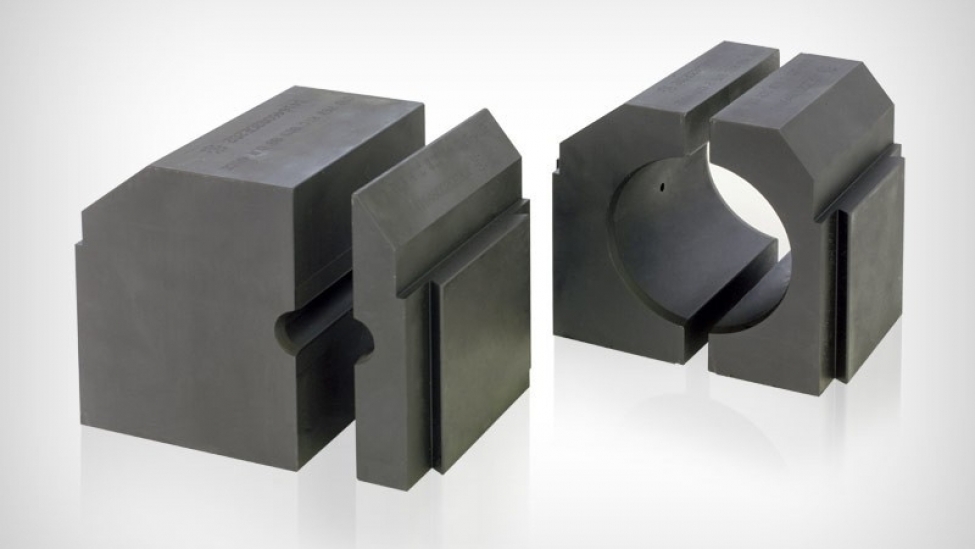

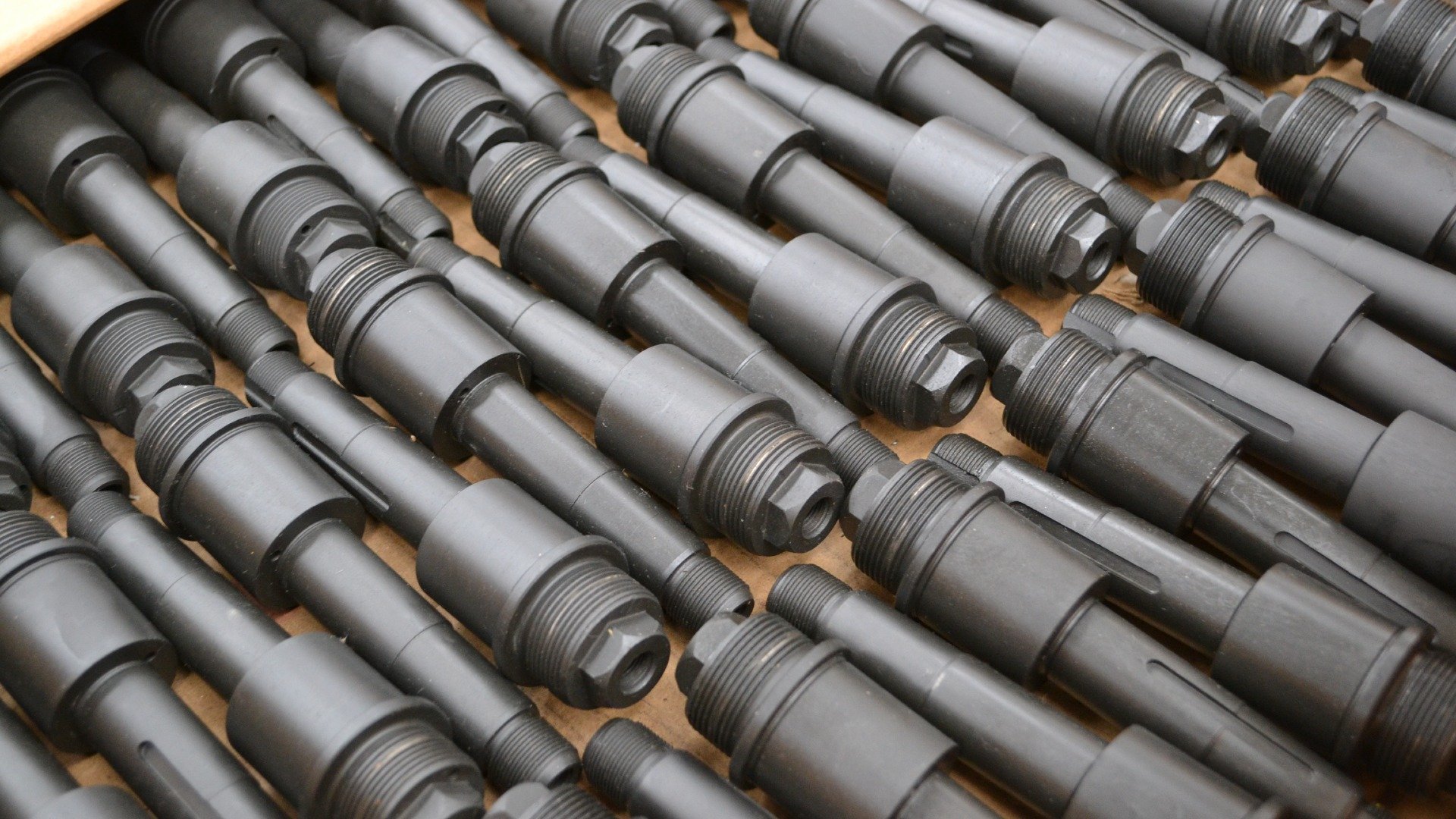

PHOSPHATING
PROCESS: Galvanic process to increase the corrosion resistance and anti-friction property, for general components, replacing the traditional paint.TREATABLE MATERIALS: Ferrous materials and low alloy steels
THICKNESS: 5-10 micron
CAPACITY:
- Max Cylinder diameter: 500 mm
- Max Length: 700 mm
- Max Weight: 500 kg
| Treatments | Materials | Thickness | Density | Corrosion res. (salt mist spray test ASTM B117) | Color |
|---|---|---|---|---|---|
| Mn Phosphating | Structural and Construction Steel, Low alloy Steel, Cast Iron | 0,002 to 0,010 mm | 7,7 g/m2 | 72 hours | Black |
| Nickel Plating | Structural and Construction Steel, Low alloy Steel, Cast Iron | 0,01 to 0,3mm | 4,5 g/dm2 | 96 hours | Grey |
